Ampliphone

Ampliphone wooden speaker prototype

Fabrication, UX

Ampliphone

A wooden phone stand that boosts the sound coming from your phone speaker!

View the design presentation
Role
Technical Artist, Fabrication, 3D Rendering
Team
4
Type
Physical Product (Fabrication)
Tools
Rhino + Grasshopper, Maya (renders)
Timeline
Fall 2021
Links
Design presentation (Figma)

What I made

  • Produced the technical drawings during planning, dimensioned so the parts could be laser cut precisely.
  • Built the material renders in Maya to show the team what the finished device would look like in different woods and finishes.
  • The result: a wooden phone stand with a lens-inspired aperture (two ports that open and close on a lever to boost the phone's speaker) in two magnet-locked halves that close into a carry box.

Process and Images

Images

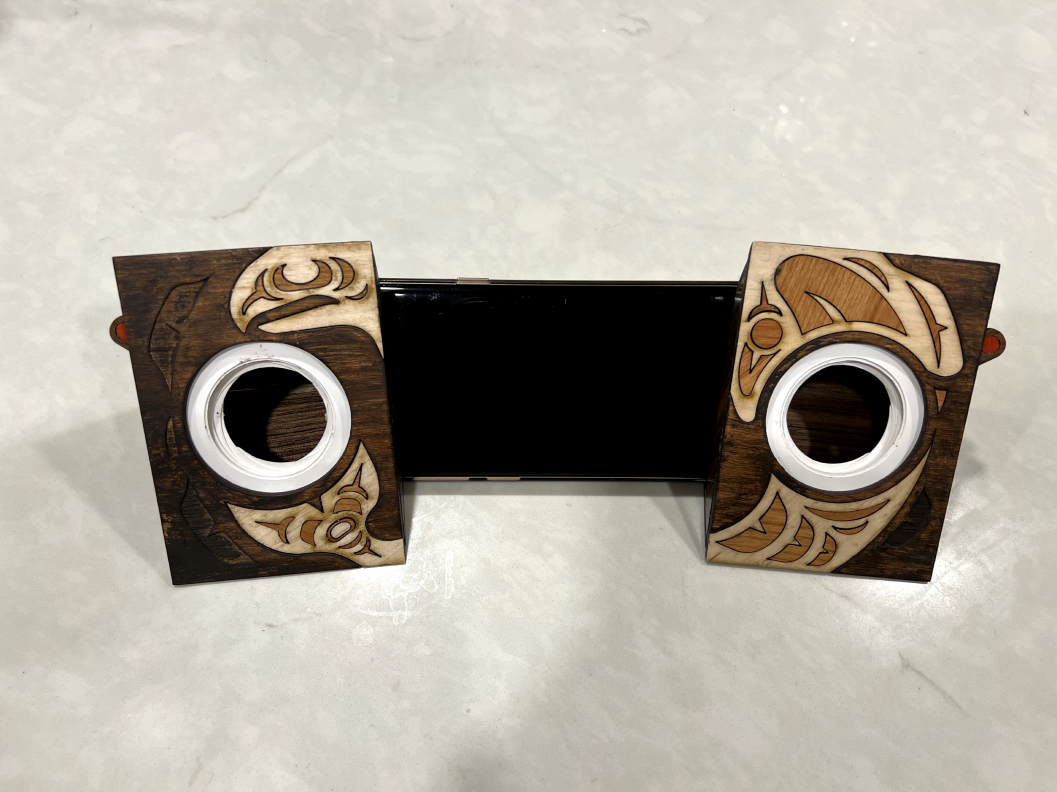

Ampliphone speaker prototype with open sound ports

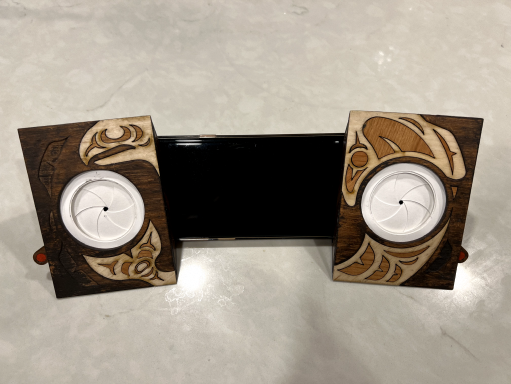

A closed version of the lens-inspired speaker holes. You can control the aperture using the lever on the side.

Renders

Ampliphone speaker render with wooden panels Ampliphone speaker enclosure render

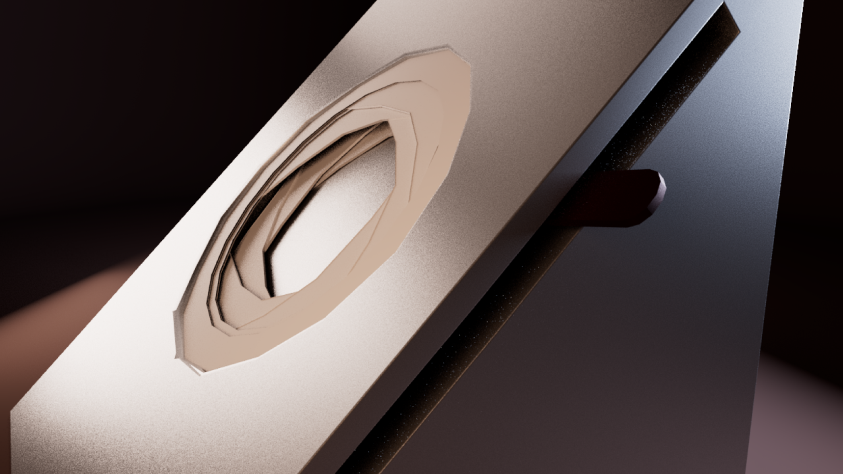

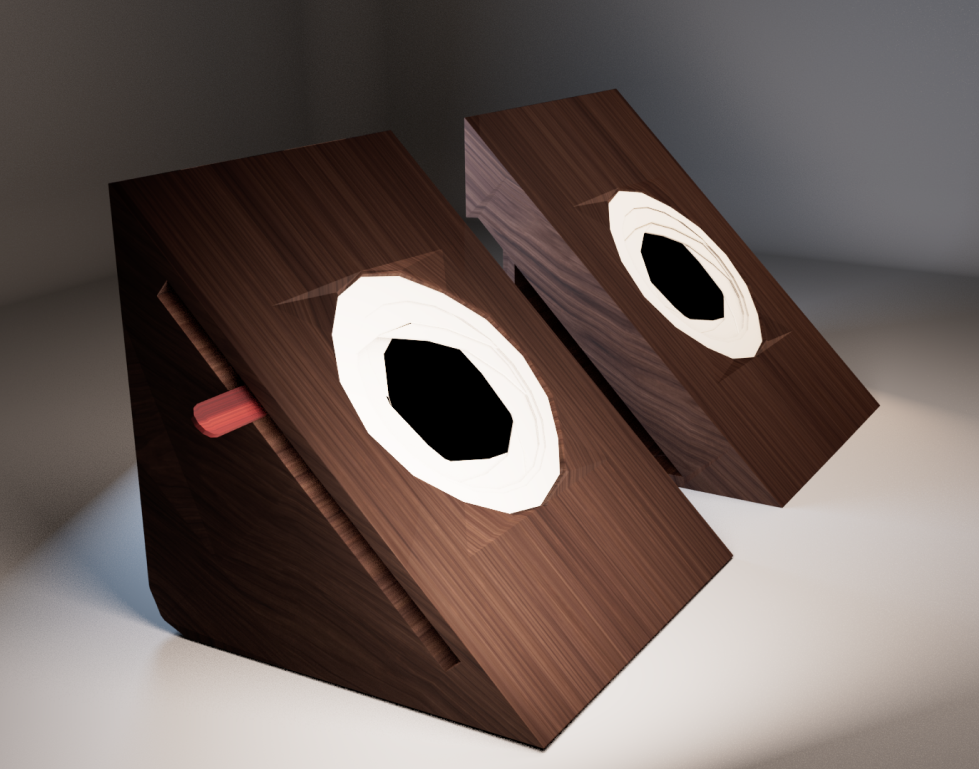

Renders made using Maya to imagine the final product

Final Prototype

Ampliphone speaker prototype with decorative wood panels

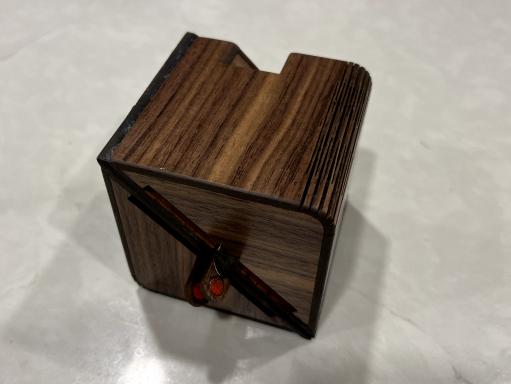

The two pieces were designed to fit together as a box to be carried around. They also have magnets inside which lock them in place
